RouteTable.Entry Class Reference

Class Entry represents a dictionary containing current estimated values for forwarding a packet to the given mac. More...

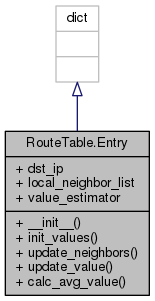

Inheritance diagram for RouteTable.Entry:

Collaboration diagram for RouteTable.Entry:

Public Member Functions
def	__init__ (self, dst_ip, neighbors_list)
	Constructor. More...
def	init_values (self)
	Initialize the first estimation values for the freshly added actions/neighbors. More...
def	update_neighbors (self, neighbors_list)
	Update the list of neighbors, according to a given neighbors list. More...
def	update_value (self, mac, reward)
	Update estimation value on the action (mac) by the given reward. More...
def	calc_avg_value (self)
	Calculate and output the average of estimation values of this entry itself. More...

Public Attributes
	dst_ip
	Destination IP address of the route. More...
	local_neighbor_list
	Store a copy of the initial list of direct neighbors. More...
	value_estimator
	Create rl_logic.ValueEstimator object for keeping the updates for incoming rewards. More...

Detailed Description

Class Entry represents a dictionary containing current estimated values for forwarding a packet to the given mac.

Constructor & Destructor Documentation

def RouteTable.Entry.__init__	(		self,
			dst_ip,
			neighbors_list
	)

Constructor.

Parameters

self	The object pointer.
dst_ip	Destination IP address of the route.
neighbors_list	List of MAC addresses of currently accessible direct neighbors.

Returns

None

Member Function Documentation

def RouteTable.Entry.calc_avg_value

(

self

)

Calculate and output the average of estimation values of this entry itself.

Initialize the first estimation values for the freshly added actions/neighbors.

Parameters

self	The object pointer.

Returns

Average estimation value: sum(self.values()) / len(self).

def RouteTable.Entry.init_values

(

self

)

Initialize the first estimation values for the freshly added actions/neighbors.

Parameters

self	The object pointer.

Returns

None

Here is the caller graph for this function:

def RouteTable.Entry.update_neighbors	(		self,
			neighbors_list
	)

Update the list of neighbors, according to a given neighbors list.

Parameters

self	The object pointer.
neighbors_list	List of MAC addresses of currently accessible direct neighbors.

Returns

None

Here is the call graph for this function:

def RouteTable.Entry.update_value	(		self,
			mac,
			reward
	)

Update estimation value on the action (mac) by the given reward.

Parameters

self	The object pointer.
mac	MAC address of the neighbor (action ID).
reward	Reward value to be assigned.

Returns

None

Member Data Documentation

RouteTable.Entry.dst_ip

Destination IP address of the route.

RouteTable.Entry.local_neighbor_list

Store a copy of the initial list of direct neighbors.

RouteTable.Entry.value_estimator

Create rl_logic.ValueEstimator object for keeping the updates for incoming rewards.

---

The documentation for this class was generated from the following file:

• RouteTable.py
